Amazon Kinesis

Last updated on July 29, 2023

Amazon Kinesis Cheat Sheet

  • Makes it easy to collect, process, and analyze real-time, streaming data.
  • Kinesis can ingest real-time data such as video, audio, application logs, website clickstreams, and IoT telemetry data for machine learning, analytics, and other applications.

Kinesis Video Streams

  • A fully managed AWS service that you can use to stream live video from devices to the AWS Cloud, or build applications for real-time video processing or batch-oriented video analytics.
  • How it works

AWS Training Amazon Kinesis 2

  • Benefits
    • You can connect and stream from millions of devices.
    • You can configure your Kinesis video stream to durably store media data for custom retention periods. Kinesis Video Streams also generates an index over the stored data based on producer-generated or service-side timestamps.
    • Kinesis Video Streams is serverless, so there is no infrastructure to set up or manage.
    • You can build real-time and batch applications on data streams.
    • Kinesis Video Streams enforces Transport Layer Security (TLS)-based encryption on data streaming from devices, and encrypts all data at rest using AWS KMS.
  • Components
    • Producer – Any source that puts data into a Kinesis video stream.
    • Kinesis video stream – A resource that enables you to transport live video data, optionally store it, and make the data available for consumption both in real time and on a batch or ad hoc basis.
      • Time-encoded data is any data in which the records are in a time series, and each record is related to its previous and next records.
      • A fragment is a self-contained sequence of frames. The frames belonging to a fragment should have no dependency on any frames from other fragments.
      • Upon receiving the data from a producer, Kinesis Video Streams stores incoming media data as chunks. Each chunk consists of the actual media fragment, a copy of media metadata sent by the producer, and the Kinesis Video Streams-specific metadata such as the fragment number, and server-side and producer-side timestamps.
    • Consumer – Gets data, such as fragments and frames, from a Kinesis video stream to view, process, or analyze it. Generally, these consumers are called Kinesis Video Streams applications.
  • Kinesis Video Streams provides
    • APIs for you to create and manage streams and read or write media data to and from a stream.
    • A console that supports live and video-on-demand playback.
    • A set of producer libraries that you can use in your application code to extract data from your media sources and upload it to your Kinesis video stream.
  • Video Playbacks
    • You can view a Kinesis video stream using either
      • HTTP Live Streaming (HLS) – You can use HLS for live playback.
      • GetMedia API – You use the GetMedia API to build your own applications to process Kinesis video streams. GetMedia is a real-time API with low latency.
  • Metadata
    • Metadata is a mutable key-value pair. You can use it to describe the content of the fragment, embed associated sensor readings that need to be transferred along with the actual fragment, or meet other custom needs.
    • There are two modes in which the metadata can be embedded with fragments in a stream:
      • Nonpersistent: You can affix metadata on an ad hoc basis to fragments in a stream, based on business-specific criteria that have occurred.
      • Persistent: You can affix metadata to successive, consecutive fragments in a stream based on a continuing need.
  • Pricing
    • You pay only for the volume of data you ingest, store, and consume through the service.



Kinesis Data Stream

  • A massively scalable, highly durable data ingestion and processing service optimized for streaming data. You can configure hundreds of thousands of data producers to continuously put data into a Kinesis data stream.
  • Tutorials dojo strip

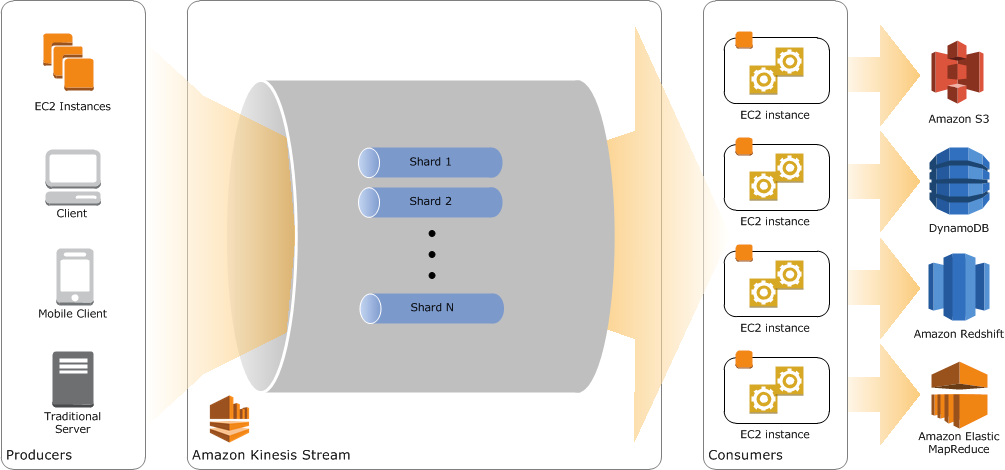

  • How it works

AWS Training Amazon Kinesis 3

Concepts

    • Data Producer – An application that typically emits data records as they are generated to a Kinesis data stream. Data producers assign partition keys to records. Partition keys ultimately determine which shard ingests the data record for a data stream.
    • Data Consumer – A distributed Kinesis application or AWS service retrieving data from all shards in a stream as it is generated. Most data consumers are retrieving the most recent data in a shard, enabling real-time analytics or handling of data.
    • Data Stream – A logical grouping of shards. There are no bounds on the number of shards within a data stream. A data stream will retain data for 24 hours, or up to 7 days when extended retention is enabled.
    • Shard – The base throughput unit of a Kinesis data stream.
      • A shard is an append-only log and a unit of streaming capability. A shard contains an ordered sequence of records ordered by arrival time.
      • Add or remove shards from your stream dynamically as your data throughput changes.
      • One shard can ingest up to 1000 data records per second, or 1MB/sec. Add more shards to increase your ingestion capability.
      • When consumers use enhanced fan-out, one shard provides 1MB/sec data input and 2MB/sec data output for each data consumer registered to use enhanced fan-out.
      • When consumers do not use enhanced fan-out, a shard provides 1MB/sec of input and 2MB/sec of data output, and this output is shared with any consumer not using enhanced fan-out.
      • You will specify the number of shards needed when you create a stream and can change the quantity at any time.
    • Data Record
      • A record is the unit of data stored in a Kinesis stream. A record is composed of a sequence number, partition key, and data blob.
      • A data blob is the data of interest your data producer adds to a stream. The maximum size of a data blob is 1 MB.
    • Partition Key
      • A partition key is typically a meaningful identifier, such as a user ID or timestamp. It is specified by your data producer while putting data into a Kinesis data stream, and useful for consumers as they can use the partition key to replay or build a history associated with the partition key.
      • The partition key is also used to segregate and route data records to different shards of a stream.
    • Sequence Number
      • A sequence number is a unique identifier for each data record. A sequence number is assigned by Kinesis Data Streams when a data producer calls PutRecord or PutRecords API to add data to a Kinesis data stream.
  • Amazon Kinesis Agent is a pre-built Java application that offers an easy way to collect and send data to your Amazon Kinesis data stream.
  • Monitoring

    • You can monitor shard-level metrics in Kinesis Data Streams.
    • You can monitor your data streams in Amazon Kinesis Data Streams using CloudWatch, Kinesis Agent, Kinesis libraries.
    • Log API calls with CloudTrail.
  • Security

    • Kinesis Data Streams can automatically encrypt sensitive data as a producer enters it into a stream. Kinesis Data Streams uses AWS KMS master keys for encryption.
    • Use IAM for managing access controls.
    • You can use an interface VPC endpoint to keep traffic between your Amazon VPC and Kinesis Data Streams from leaving the Amazon network.
  • Pricing

    • You are charged for each shard at an hourly rate.
    • PUT Payload Unit is charged with a per million PUT Payload Units rate.
    • When consumers use enhanced fan-out, they incur hourly charges per consumer-shard hour and per GB of data retrieved.
    • You are charged an additional rate on each shard hour incurred by your data stream once you enable extended data retention.
  • Limits

      • There is no upper limit on the number of shards you can have in a stream or account.
      • There is no upper limit on the number of streams you can have in an account.
      • A single shard can ingest up to 1 MiB of data per second (including partition keys) or 1,000 records per second for writes.
      • The default shard limit is 500 shards for the following AWS Regions: US East (N. Virginia), US West (Oregon), and EU (Ireland). For all other Regions, the default shard limit is 200 shards.
      • Each shard can support up to five read transactions per second.



Kinesis Data Firehose

  • The easiest way to load streaming data into data stores and analytics tools.
  • It is a fully managed service that automatically scales to match the throughput of your data.
  • It can also batch, compress, and encrypt the data before loading it.
  • How it works

AWS Training Amazon Kinesis 4

  • Features

    • It can capture, transform, and load streaming data into S3, Redshift, Elasticsearch Service, generic HTTP endpoints, and service providers like Datadog, New Relic, MongoDB, and Splunk, enabling near real-time analytics with existing business intelligence tools and dashboards being used today.
    • You can specify a batch size or batch interval to control how quickly data is uploaded to destinations. Additionally, you can specify if data should be compressed.
    • Once launched, your delivery streams automatically scale up and down to handle gigabytes per second or more of input data rate, and maintain data latency at levels you specify for the stream.
    • Kinesis Data Firehose can convert the format of incoming data from JSON to Parquet or ORC formats before storing the data in S3.
    • You can configure Kinesis Data Firehose to prepare your streaming data before it is loaded to data stores. Kinesis Data Firehose provides pre-built Lambda blueprints for converting common data sources such as Apache logs and system logs to JSON and CSV formats. You can use these pre-built blueprints without any change, customize them further, or write your own custom functions.
  • Concepts

    • Kinesis Data Firehose Delivery Stream – The underlying entity of Kinesis Data Firehose. You use Kinesis Data Firehose by creating a Kinesis Data Firehose delivery stream and then sending data to it.
    • Record – The data of interest that your data producer sends to a Kinesis Data Firehose delivery stream. A record can be as large as 1,000 KB.
    • Data Producer – Producers send records to Kinesis Data Firehose delivery streams.
    • Buffer Size and Buffer Interval – Kinesis Data Firehose buffers incoming streaming data to a certain size or for a certain period of time before delivering it to destinations. Buffer Size is in MBs and Buffer Interval is in seconds.
  • Stream Sources

    • You can send data to your Kinesis Data Firehose Delivery stream using different types of sources:
      • a Kinesis data stream,
      • the Kinesis Agent,
      • or the Kinesis Data Firehose API using the AWS SDK.
    • You can also use CloudWatch Logs, CloudWatch Events, AWS IoT, or Amazon SNS as your data source.
    • Some AWS services can only send messages and events to a Kinesis Data Firehose delivery stream that is in the same Region.
  • Data Delivery and Transformation

    • Kinesis Data Firehose can invoke your Lambda function to transform incoming source data and deliver the transformed data to destinations.
    • Kinesis Data Firehose buffers incoming data up to 3 MB by default.
    • If your Lambda function invocation fails because of a network timeout or because you’ve reached the Lambda invocation limit, Kinesis Data Firehose retries the invocation three times by default.
    • Kinesis Data Firehose can convert the format of your input data from JSON to Apache Parquet or Apache ORC before storing the data in S3. Parquet and ORC are columnar data formats that save space and enable faster queries compared to row-oriented formats like JSON.
    • Data delivery format:
      • For data delivery to S3, Kinesis Data Firehose concatenates multiple incoming records based on the buffering configuration of your delivery stream. It then delivers the records to S3 as an S3 object.
      • For data delivery to Redshift, Kinesis Data Firehose first delivers incoming data to your S3 bucket in the format described earlier. Kinesis Data Firehose then issues a Redshift COPY command to load the data from your S3 bucket to your Redshift cluster.
      • For data delivery to ElasticSearch, Kinesis Data Firehose buffers incoming records based on the buffering configuration of your delivery stream. It then generates an Elasticsearch bulk request to index multiple records to your Elasticsearch cluster.
      • For data delivery to Splunk, Kinesis Data Firehose concatenates the bytes that you send.
    • Data delivery frequency
      • The frequency of data delivery to S3 is determined by the S3 Buffer size and Buffer interval value that you configured for your delivery stream.
      • The frequency of data COPY operations from S3 to Redshift is determined by how fast your Redshift cluster can finish the COPY command.
      • The frequency of data delivery to ElasticSearch is determined by the Elasticsearch Buffer size and Buffer interval values that you configured for your delivery stream.
      • Kinesis Data Firehose buffers incoming data before delivering it to Splunk. The buffer size is 5 MB, and the buffer interval is 60 seconds.
  • Monitoring

    • Kinesis Data Firehose exposes several metrics through the console, as well as CloudWatch for monitoring.
    • Kinesis Agent publishes custom CloudWatch metrics and helps assess whether the agent is healthy, submitting data into Kinesis Data Firehose as specified, and consuming the appropriate amount of CPU and memory resources on the data producer.
    • Log API calls with CloudTrail.
  • Security

    • Kinesis Data Firehose provides you the option to have your data automatically encrypted after it is uploaded to the destination.
    • Manage resource access with IAM.
  • Pricing

    • You pay only for the volume of data you transmit through the service. You are billed for the volume of data ingested into Kinesis Data Firehose, and if applicable, for data format conversion to Apache Parquet or ORC.
  • Limits

    • By default, each account can have up to 50 Kinesis Data Firehose delivery streams per Region.
    • The maximum size of a record sent to Kinesis Data Firehose, before base64-encoding, is 1,000 KiB.



Kinesis Data Analytics

  • Analyze streaming data, gain actionable insights, and respond to your business and customer needs in real time. You can quickly build SQL queries and Java applications using built-in templates and operators for common processing functions to organize, transform, aggregate, and analyze data at any scale.
  • How it works

AWS Training Amazon Kinesis 5

  • General Features

    • Kinesis Data Analytics is serverless and takes care of everything required to continuously run your application.
    • Kinesis Data Analytics elastically scales applications to keep up with any volume of data in the incoming data stream.
    • Kinesis Data Analytics delivers sub-second processing latencies so you can generate real-time alerts, dashboards, and actionable insights.
  • SQL Features

    • Kinesis Data Analytics supports standard ANSI SQL.
    • Kinesis Data Analytics integrates with Kinesis Data Streams and Kinesis Data Firehose so that you can readily ingest streaming data.
    • SQL applications in Kinesis Data Analytics support two types of inputs:
      • A streaming data source is continuously generated data that is read into your application for processing.
      • A reference data source is static data that your application uses to enrich data coming in from streaming sources.
    • Kinesis Data Analytics provides an easy-to-use schema editor to discover and edit the structure of the input data. The wizard automatically recognizes standard data formats such as JSON and CSV.
    • Kinesis Data Analytics offers functions optimized for stream processing so that you can easily perform advanced analytics such as anomaly detection and top-K analysis on your streaming data.
  • Java Features

    • Kinesis Data Analytics includes open source libraries based on Apache Flink. Apache Flink is an open source framework and engine for building highly available and accurate streaming applications.
    • Kinesis Data Analytics for Apache Flink supports streaming applications built using Apache Beam Java SDK.
    • You can use the Kinesis Data Analytics Java libraries to integrate with multiple AWS services.
    • You can create and delete durable application backups through a simple API call. You can immediately restore your applications from the latest backup after a disruption, or you can restore your application to an earlier version.
    • Java applications in Kinesis Data Analytics enable you to build applications whose processed records affect the results exactly once, referred to as exactly once processing.
    • The service stores previous and in-progress computations, or state, in running application storage. State is always encrypted and incrementally saved in running application storage.
  • An application is the primary resource in Kinesis Data Analytics. Kinesis data analytics applications continuously read and process streaming data in real-time.
    • You write application code using SQL to process the incoming streaming data and produce output. Then, Kinesis Data Analytics writes the output to a configured destination.
    • You can also process and analyze streaming data using Java.
  • Components

    • Input is the streaming source for your application. In the input configuration, you map the streaming source to an in-application data stream(s).
    • Application code is a series of SQL statements that process input and produce output.
    • You can create one or more in-application streams to store the output. You can then optionally configure an application output to persist data from specific in-application streams to an external destination.
  • An in-application data stream is an entity that continuously stores data in your application for you to perform processing.
  • Kinesis Data Analytics provisions capacity in the form of Kinesis Processing Units (KPU). A single KPU provides you with memory (4 GB) and corresponding computing and networking.
  • For Java applications using Apache Flink, you build your application locally and then make your application code available to the service by uploading it to an S3 bucket.
  • Kinesis Data Analytics for Java applications provides your application with 50 GB of running application storage per Kinesis Processing Unit. Kinesis Data Analytics scales storage with your application.
  • Running application storage is used for saving application state using checkpoints. It is also accessible to your application code to use as a temporary disk for caching data or any other purpose.
  • Pricing

    • You are charged an hourly rate based on the average number of Kinesis Processing Units (or KPUs) used to run your stream processing application.
    • For Java applications, you are charged a single additional KPU per application for application orchestration. Java applications are also charged for running application storage and durable application backups.

High Performance Data Streaming with Amazon Kinesis: Best Practices and Common Pitfalls

Amazon Kinesis-related Cheat Sheets:



Note: If you are studying for the AWS Certified Data Analytics Specialty exam, we highly recommend that you take our AWS Certified Data Analytics – Specialty Practice Exams and read our Data Analytics Specialty exam study guide.

AWS Certified Data Analytics Sepcialty

Validate Your Knowledge

Question 1

A Solutions Architect designed a real-time data analytics system based on Kinesis Data Stream and Lambda. A week after the system has been deployed, the users noticed that it performed slowly as the data rate increases. The Architect identified that the performance of the Kinesis Data Streams is causing this problem.

Which of the following should the Architect do to improve performance?

  1. Increase the number of shards of the Kinesis stream by using the UpdateShardCount command.
  2. Replace the data stream with Amazon Kinesis Data Firehose instead.
  3. Improve the performance of the stream by decreasing the number of its shards using the MergeShard command.
  4. Implement Step Scaling to the Kinesis Data Stream.

Correct Answer: 1

Amazon Kinesis Data Streams supports resharding, which lets you adjust the number of shards in your stream to adapt to changes in the rate of data flow through the stream. Resharding is considered an advanced operation.

There are two types of resharding operations: shard split and shard merge. In a shard split, you divide a single shard into two shards. In a shard merge, you combine two shards into a single shard. Resharding is always pairwise in the sense that you cannot split into more than two shards in a single operation, and you cannot merge more than two shards in a single operation. The shard or pair of shards that the resharding operation acts on are referred to as parent shards. The shard or pair of shards that result from the resharding operation are referred to as child shards.

AWS Exam Readiness Courses

Splitting increases the number of shards in your stream and therefore increases the data capacity of the stream. Because you are charged on a per-shard basis, splitting increases the cost of your stream. Similarly, merging reduces the number of shards in your stream and therefore decreases the data capacity—and cost—of the stream.

If your data rate increases, you can also increase the number of shards allocated to your stream to maintain the application performance. You can reshard your stream using the UpdateShardCount API. The throughput of an Amazon Kinesis data stream is designed to scale without limits via increasing the number of shards within a data stream. Hence, the correct answer is to increase the number of shards of the Kinesis stream by using the UpdateShardCount command.

Replacing the data stream with Amazon Kinesis Data Firehose instead is incorrect because the throughput of Kinesis Firehose is not exceptionally higher than Kinesis Data Streams. In fact, the throughput of an Amazon Kinesis data stream is designed to scale without limits via increasing the number of shards within a data stream.

Improving the performance of the stream by decreasing the number of its shards using the MergeShard command is incorrect because merging the shards will effectively decrease the performance of the stream rather than improve it.

Implementing Step Scaling to the Kinesis Data Stream is incorrect because there is no Step Scaling feature for Kinesis Data Streams. This is only applicable for EC2.

References:
https://aws.amazon.com/blogs/big-data/scale-your-amazon-kinesis-stream-capacity-with-updateshardcount/
https://aws.amazon.com/kinesis/data-streams/faqs/
https://docs.aws.amazon.com/streams/latest/dev/kinesis-using-sdk-java-resharding.html

Note: This question was extracted from our AWS Certified Solutions Architect Associate Practice Exams.

Question 2

The developer has built a real-time IoT device monitoring application that leverages Amazon Kinesis Data Stream to ingest data. The application uses several EC2 instances for processing. Recently, the developer has observed a steady increase in the rate of data flowing into the stream, indicating that the stream’s capacity must be scaled up to sustain optimal performance.

What should the developer do to increase the capacity of the stream?

  1. Split every shard in the stream.
  2. Upgrade the instance type of the EC2 instances.
  3. Merge every shard in the stream.
  4. Integrate Amazon Kinesis Data Firehose with the Amazon Kinesis Data Stream to increase the capacity of the stream.

Correct Answer: 1

Amazon Kinesis Data Streams is a massively scalable, highly durable data ingestion and processing service optimized for streaming data. You can configure hundreds of thousands of data producers to continuously put data into a Kinesis data stream. Data will be available within milliseconds to your Amazon Kinesis applications, and those applications will receive data records in the order they were generated.

The purpose of resharding in Amazon Kinesis Data Streams is to enable your stream to adapt to changes in the rate of data flow. You split shards to increase the capacity (and cost) of your stream. You merge shards to reduce the cost (and capacity) of your stream.

One approach to resharding could be to split every shard in the stream—which would double the stream’s capacity. However, this might provide more additional capacity than you actually need and therefore create unnecessary costs.

You can also use metrics to determine which are your “hot” or “cold” shards, that is, shards that are receiving much more data, or much less data, than expected. You could then selectively split the hot shards to increase capacity for the hash keys that target those shards. Similarly, you could merge cold shards to make better use of their unused capacity.

You can obtain some performance data for your stream from the Amazon CloudWatch metrics that Kinesis Data Streams publishes. However, you can also collect some of your own metrics for your streams. One approach would be to log the hash key values generated by the partition keys for your data records. Recall that you specify the partition key at the time that you add the record to the stream.

Hence, the correct answer is to split every shard in the stream to increase the capacity of the data stream.

Upgrading the instance type of the EC2 instances is incorrect. Although it will improve the processing time of the data in the stream, it will not increase the capacity of the stream itself. You have to reshard the stream in order to increase or decrease its capacity, and not just upgrade the EC2 instances which process the data in the stream.

Merging every shard in the stream is incorrect because merging shards will actually decrease the capacity of the stream rather than increase it. This is only useful if you want to save costs or if the data stream is underutilized, which are both not indicated in the scenario.

Integrating Amazon Kinesis Data Firehose with the Amazon Kinesis Data Stream to increase the capacity of the stream is incorrect because Kineses Data Firehose just provides a way to reliably transform and load streaming data into data stores and analytics tools. This method will not increase the capacity of the stream as it doesn’t mention anything about resharding.

References:
https://docs.aws.amazon.com/streams/latest/dev/kinesis-using-sdk-java-resharding-strategies.html
https://docs.aws.amazon.com/streams/latest/dev/kinesis-using-sdk-java-resharding.html

Kinesis Scaling, Resharding and Parallel Processing:
https://tutorialsdojo.com/kinesis-scaling-resharding-and-parallel-processing/

Note: This question was extracted from our AWS Certified Developer Associate Practice Exams.

For more AWS practice exam questions with detailed explanations, visit the Tutorials Dojo Portal:

Tutorials Dojo AWS Practice Tests

Additional Training Materials: Amazon Kinesis Video Courses on Udemy

  1. AWS Data Architect Bootcamp – 43 Services 500 FAQs 20+ Tools

Amazon Kinesis Cheat Sheet References:

https://aws.amazon.com/kinesis/
https://docs.aws.amazon.com/kinesisvideostreams/latest/dg
https://aws.amazon.com/kinesis/video-streams/features/
https://aws.amazon.com/kinesis/video-streams/pricing/
https://aws.amazon.com/kinesis/video-streams/faqs/
https://docs.aws.amazon.com/streams/latest/dev/
https://aws.amazon.com/kinesis/data-streams/pricing/
https://aws.amazon.com/kinesis/data-streams/faqs/
https://docs.aws.amazon.com/firehose/latest/dev/
https://aws.amazon.com/kinesis/data-firehose/pricing/
https://aws.amazon.com/kinesis/data-firehose/faqs/
https://docs.aws.amazon.com/kinesisanalytics/latest/dev
https://docs.aws.amazon.com/kinesisanalytics/latest/java
https://aws.amazon.com/kinesis/data-analytics/features/
https://aws.amazon.com/kinesis/data-analytics/pricing/
https://aws.amazon.com/kinesis/data-analytics/faqs/

Tutorials Dojo portal

Be Inspired and Mentored with Cloud Career Journeys!

Tutorials Dojo portal

Enroll Now – Our Azure Certification Exam Reviewers

azure reviewers tutorials dojo

Enroll Now – Our Google Cloud Certification Exam Reviewers

Tutorials Dojo Exam Study Guide eBooks

tutorials dojo study guide eBook

FREE AWS Exam Readiness Digital Courses

Subscribe to our YouTube Channel

Tutorials Dojo YouTube Channel

FREE Intro to Cloud Computing for Beginners

FREE AWS, Azure, GCP Practice Test Samplers

Recent Posts

Written by: Jon Bonso

Jon Bonso is the co-founder of Tutorials Dojo, an EdTech startup and an AWS Digital Training Partner that provides high-quality educational materials in the cloud computing space. He graduated from Mapúa Institute of Technology in 2007 with a bachelor's degree in Information Technology. Jon holds 10 AWS Certifications and is also an active AWS Community Builder since 2020.

AWS, Azure, and GCP Certifications are consistently among the top-paying IT certifications in the world, considering that most companies have now shifted to the cloud. Earn over $150,000 per year with an AWS, Azure, or GCP certification!

Follow us on LinkedIn, YouTube, Facebook, or join our Slack study group. More importantly, answer as many practice exams as you can to help increase your chances of passing your certification exams on your first try!

View Our AWS, Azure, and GCP Exam Reviewers Check out our FREE courses

Our Community

~98%
passing rate
Around 95-98% of our students pass the AWS Certification exams after training with our courses.
200k+
students
Over 200k enrollees choose Tutorials Dojo in preparing for their AWS Certification exams.
~4.8
ratings
Our courses are highly rated by our enrollees from all over the world.

What our students say about us?
