Hey, this is Step 8 of our 9-step website portfolio building with AWS!

Got lost? Click here to go to the main article, and here for the seventh step!

WordPress has proven itself as a powerful Content Management System (CMS) tool. However, as traffic increases, its performance can be compromised and slow down, especially when running on a single Amazon EC2 instance.

In this article, I’ll show you how to use Amazon ElastiCache to enable web caching and improve your website’s performance. This step applies not just to those who are creating their website portfolio but to anyone who runs a website.

What Is Web Caching and Why Does It Matter?

Think of your website’s server as a multitasking little worker, handling multiple tasks simultaneously each time someone visits your site. These tasks include processing PHP scripts, producing HTML to display the page, and creating database queries. When multiple users request the same content, the server may get overloaded, and just like any other worker, this will cause the server and your website to load slowly.

Now, this is where web caching comes to save your little worker!

Web caching is the process of saving data for future use, such as a duplicate of a web page supplied by a web server. This decreases load times and lightens the workload on your Amazon EC2 server by storing frequently visited data. Thanks to web caching, your site will now be able to manage more users with lower latency and fewer computational resources.

Why Use Amazon ElastiCache?

Amazon ElastiCache is a fully managed cache-as-a-service that can be used to set up, scale, and manage a distributed in-memory cache environment in the cloud.

Amazon ElastiCache supports three powerful caching engines, each designed for specific use cases:

1. Memcached
   • A lightweight, no-frills cache engine ideal for simple, high-performance caching without complex features.
2. Redis OSS
   • A more advanced and feature-rich engine that supports a wide range of data types, replication, persistence, pub/sub messaging, and more.
3. Valkey
   • A new open-source, Redis-compatible engine that continues the Redis experience while focusing on modern features and community-driven development.

Each engine offers unique strengths, whether you need simplicity, scalability, or advanced real-time features. Choosing the right one depends on your application’s specific needs.

For WordPress, Redis the preferred choice as it can cache:

• HTML output (page caching)
• Database query results (object caching)
• Sessions and transients

Integrating Amazon ElastiCache into your WordPress website allows you to boost server speed and deliver content rapidly, even during peak traffic periods, without changing the site’s essential architecture.

How to Integrate Amazon ElastiCache with Amazon EC2-Hosted WordPress

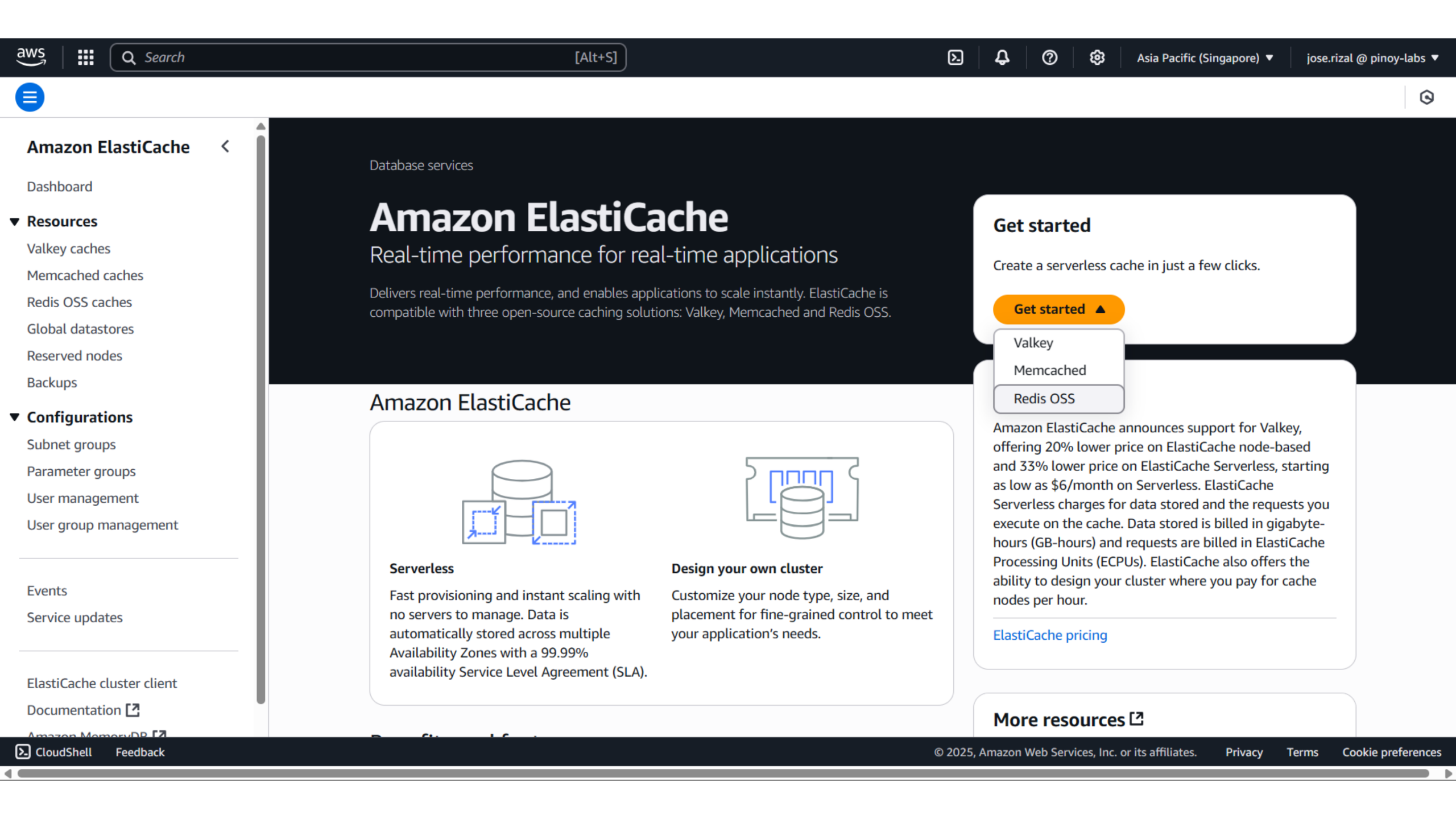

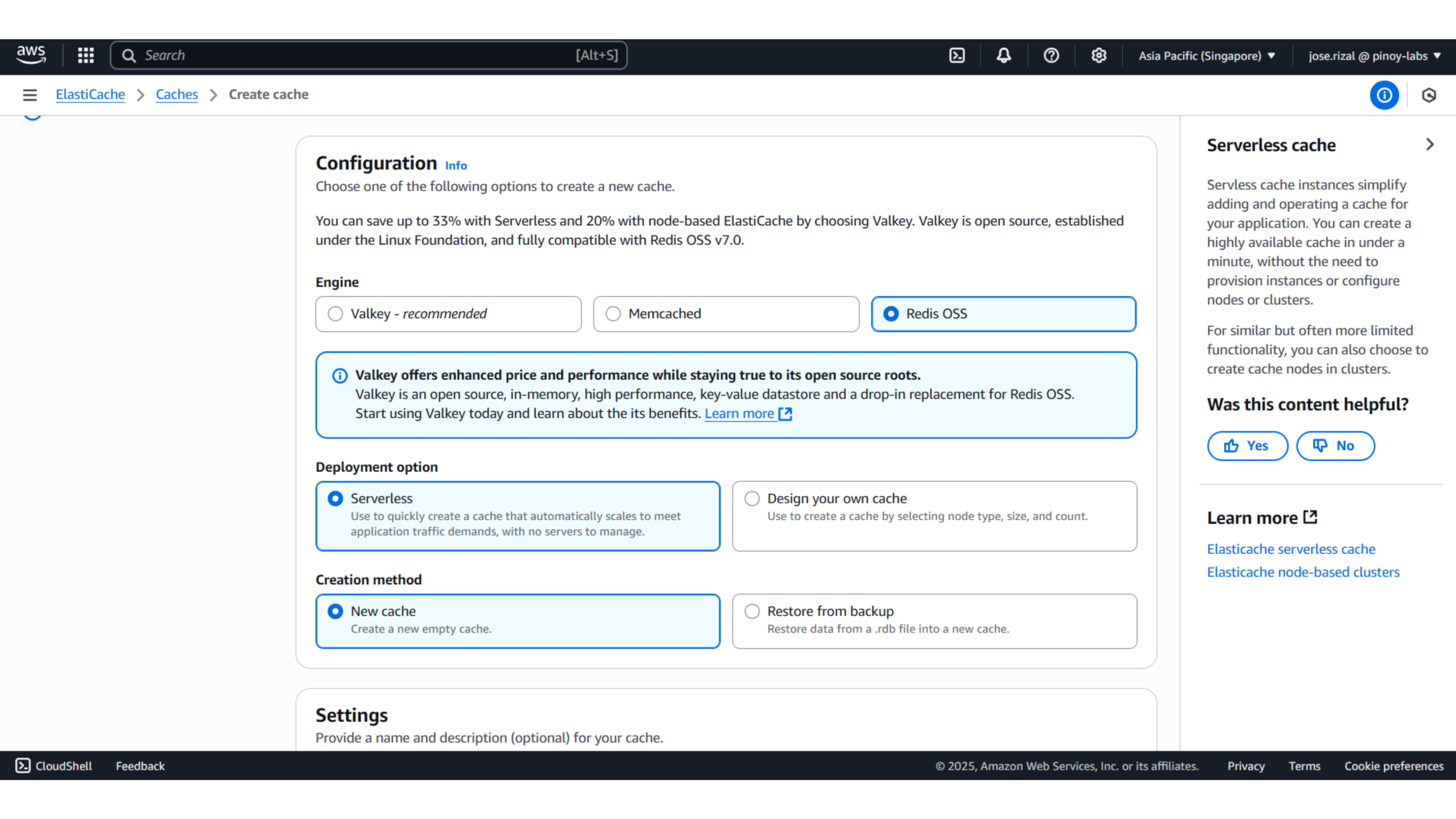

1. Launch an ElastiCache (Redis) Cluster

• Go to the AWS Management Console
• Navigate to ElastiCache > Redis > Create
• Choose a VPC that your Amazon EC2 instance is in
• Set availability zones and node configurations as needed
• Disable public access for security

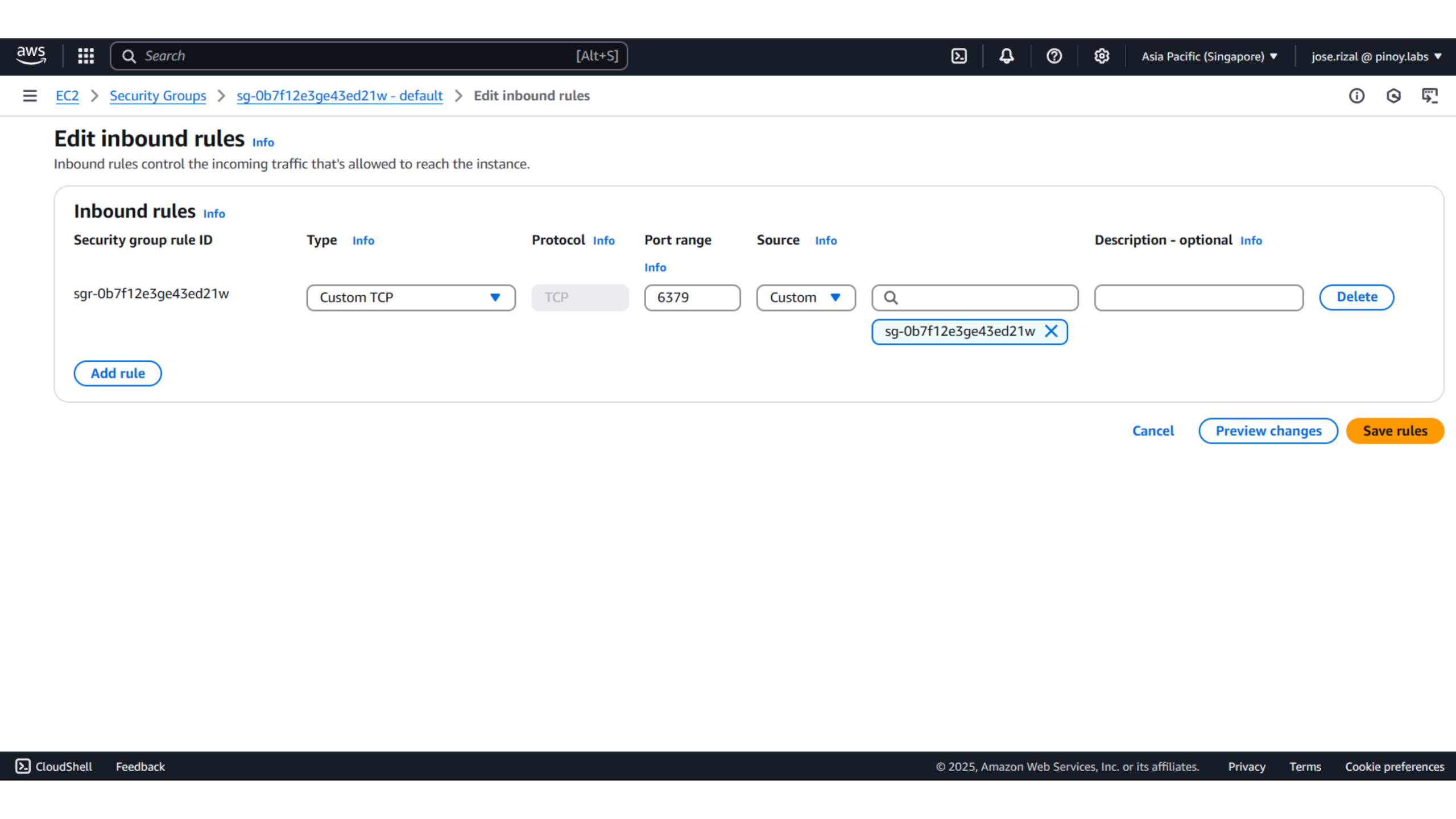

2. Modify Amazon EC2 Security Group

• Allow inbound connections on the Redis port (default: 6379) from your Amazon EC2 instance’s security group
  • This ensures your WordPress server can communicate with the ElastiCache cluster

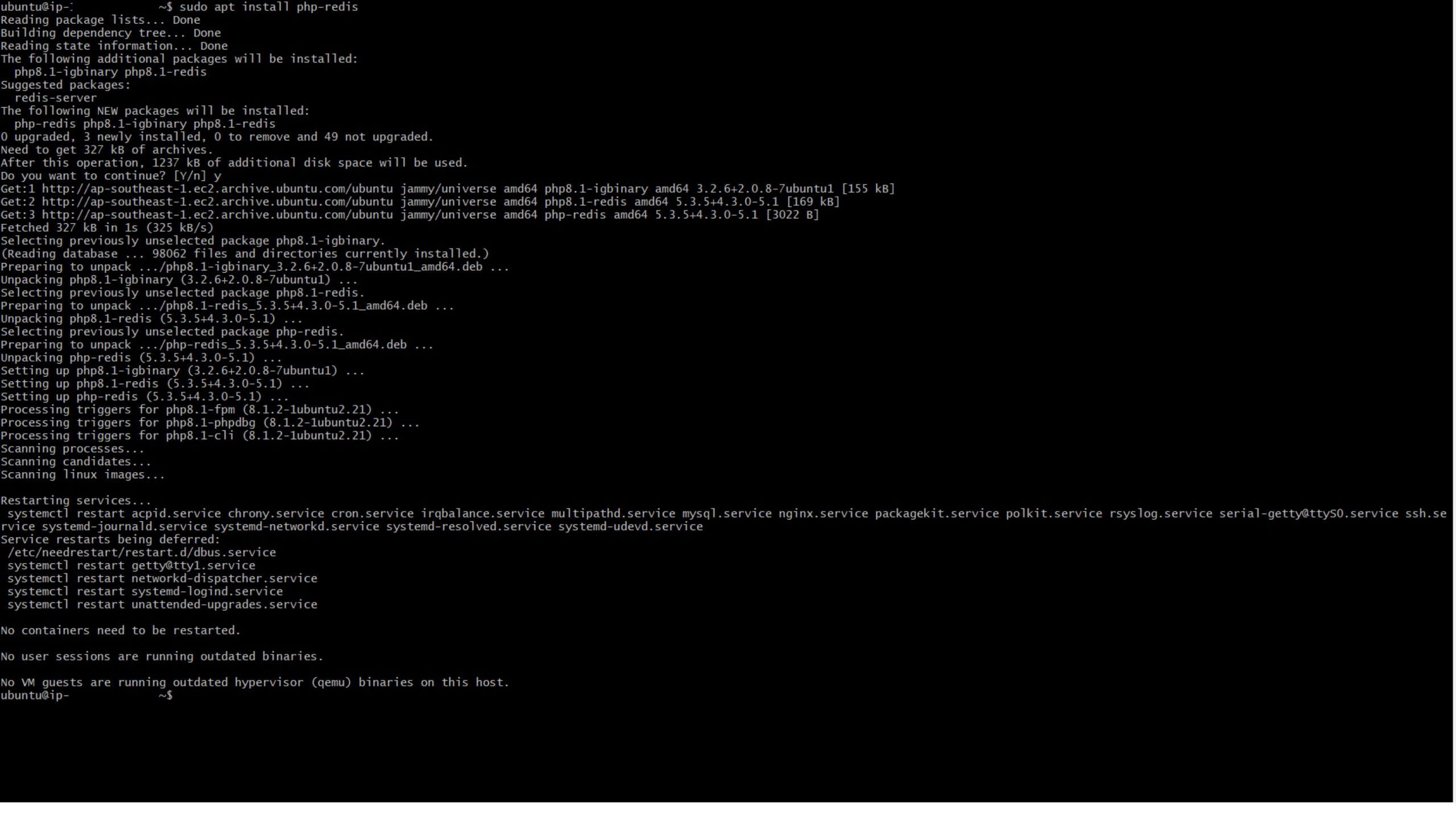

3. Install Redis PHP Extension on Amazon EC2

• Connect to your Amazon EC2 instance via SSH and run:
  • sudo apt install php-redis
    • Note: During installation, a GUI-like prompt may appear asking which web server to reconfigure automatically (e.g., apache2, nginx, etc.).
    • Just select the one you’re using — typically apache2 if you’re using Apache — and press Enter.
• Once the installation is complete, it’s still a good idea to manually restart your web server to ensure everything is properly loaded:
  • sudo systemctl restart apache2  # or nginx/php-fpm depending on your setup
  • This guarantees that the Redis extension is recognized by PHP and active for your website.

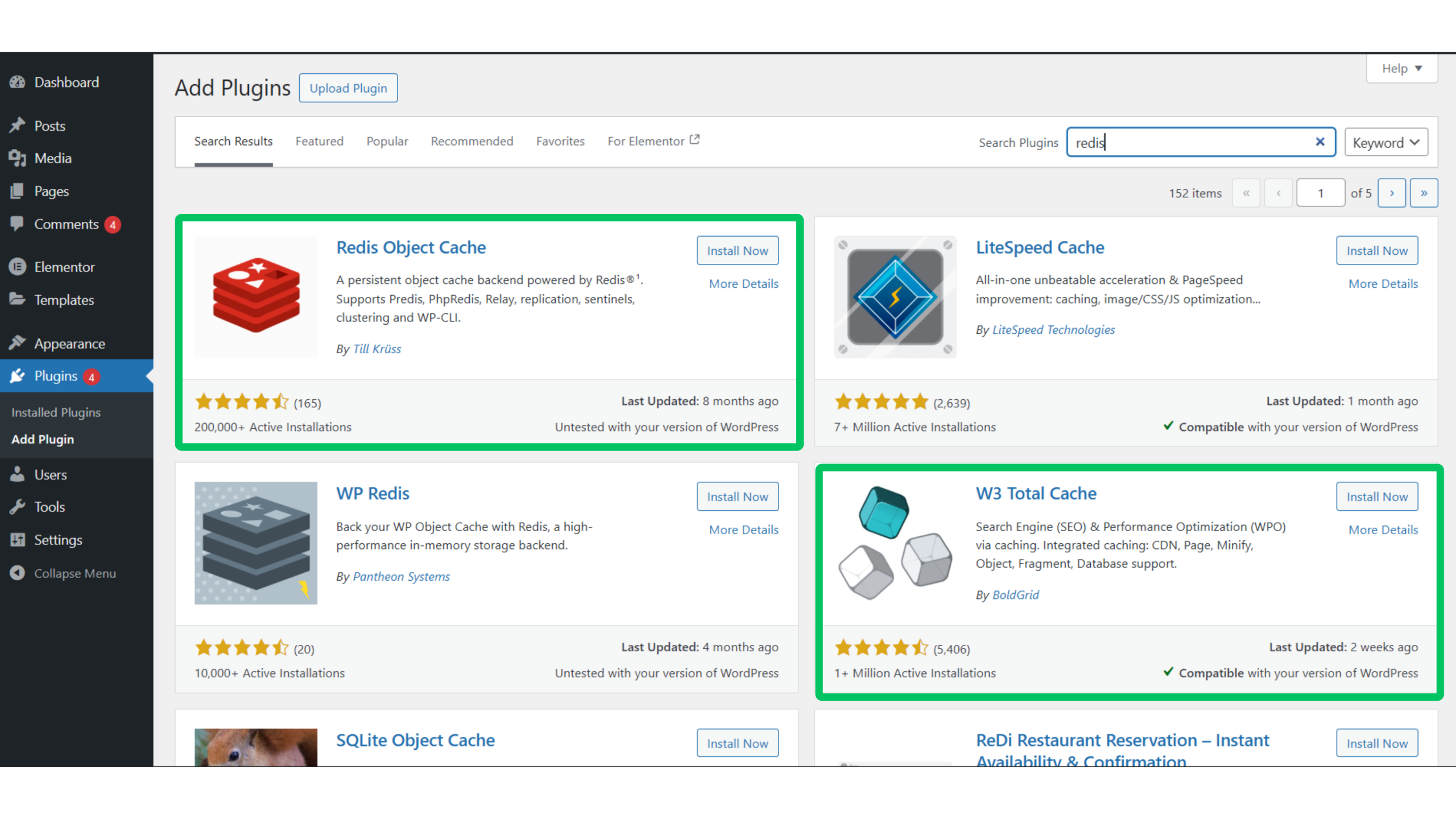

4. Install a WordPress Redis Caching Plugin

• Log in to your WordPress admin dashboard and install a plugin such as:
  • Redis Object Cache
  • W3 Total Cache

• Activate the plugin, and in the plugin settings, enter the Amazon ElastiCache endpoint as the Redis server. For example:
  • redis-cluster.xxxxxx.ng.0001.use1.cache.amazonaws.com:6379

5. Verify Cache Connection

• Most Redis plugins include a “Test Connection” feature. Use it to confirm WordPress is successfully caching data via ElastiCache.

Best Practices for WordPress Caching with Amazon ElastiCache

• Use Object Caching: Cache database queries to reduce load on MySQL.
• Enable Page Caching: Serve pre-rendered HTML for faster page delivery.
• Monitor Metrics: Use Amazon CloudWatch to keep an eye on Amazon ElastiCache performance.
• Secure Access: Ensure only your Amazon EC2 instance can access the Amazon ElastiCache cluster.

Next Article: Integrating Amazon CloudFront Web Distribution for your WordPress Site in Amazon EC2

In the next article, we’ll guide you through integrating Amazon CloudFront, a global Content Delivery Network (CDN), with your WordPress site hosted on Amazon EC2. You’ll learn how to speed up content delivery, reduce latency, and improve the overall performance and security of your website.

See you in my last article for this blog series, Cloud-9.9: Using Amazon CloudFront for Your Site in Amazon EC2!

Frequently Asked Questions

• Do I need to change my theme or plugins to use Redis?
  • No. Caching plugins integrate independently of your theme and plugin structure.
• Is Amazon ElastiCache free?
  • Amazon ElastiCache is a paid service, but you can monitor and control usage to stay within budget.
• Can I use Memcached instead of Redis?
  • Yes, but Redis offers more advanced features and is more commonly used for WordPress.
